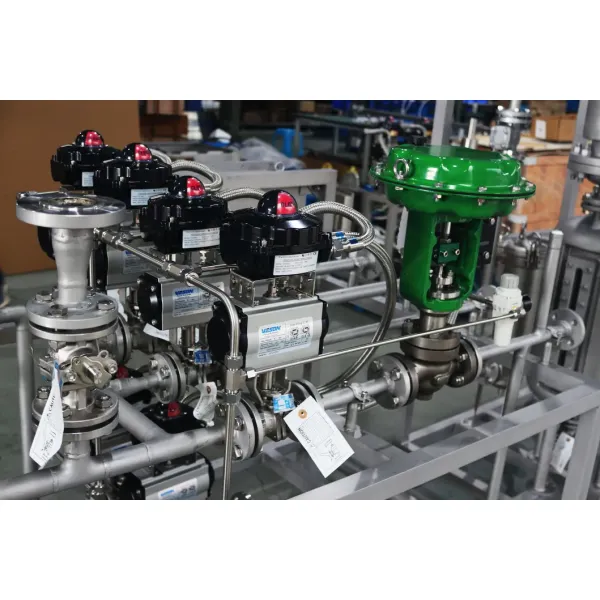

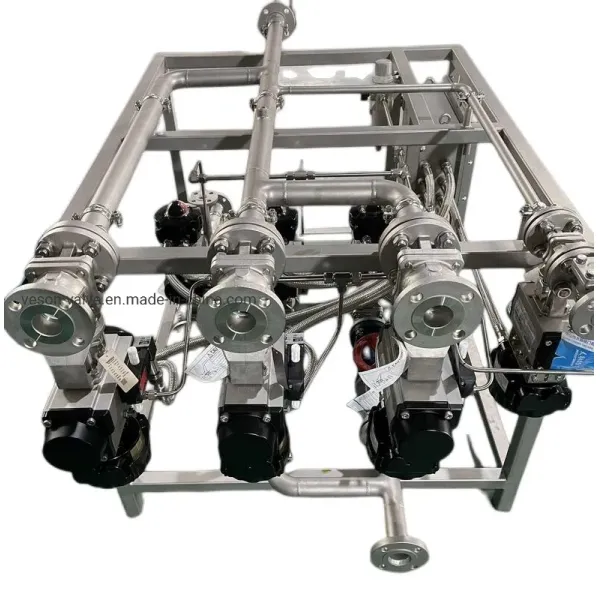

Floating Ball Valve Skid Mounted System with Straight Through Type for Industrial Usage

MOQ : 1

Channel Type : Straight Through

Valve Structure : Floating Ball

Valve Type : Floating Ball

Material Options : Carbon Steel, Stainless Steel, High Alloy

Control System : PLC, HMI, Analog Control

Wiring Options : Skid Mounted Junction Boxes, Unwired

System Integration : DCS Compatible

Base Frame : Modular

Transport Packaging : Plywood Case

Main Components : Pumps, Heat Exchangers, Filters, Vessels

Inline Components : Control Valves, Isolation Valves, Instruments

System Type : Process Skid, Utility Skid

Assembly Type : Interconnected Pipework

Control Interface : HMI

Monitoring System : Instrument Controlled

Contact Now

A skid is a system comprising main equipment such as Pumps, Heat Exchangers, Filters, and Vessels. It is assembled with interconnecting pipework with inline items such as Control Valves, Isolation Valves, and Instruments to control and monitor the skid system. Typical examples of skid systems would be Process Skids and Utility Skids.Process Skid
The Skid System can be manufactured in several materials such as carbon steel, stainless steel, or high alloy materials. The skid can be supplied with an onboard full control system with PLC (Programmable Logic Controller), HMI (Human Machine Interface) or standard Analog Control. Alternatively, it can be supplied wired to Skid Mounted Junction Boxes or not wired at all to allow the end user to control the system from their own DCS System (Distributed Control System). The above is then mounted on the main base frame to create a modular system which completes a full turnkey operating System.

Floating Ball Valve Skid Mounted System with Straight Through Type for Industrial Usage
